CD100 / CD100E

HVAC

Power Requirements :
110 / 1 / 60
Typical Extraction :
97 ppd
CD100

• A rugged epoxy-coated, steel chassis.
• A “floating” compressor for vibration and mobility protection.
• An adjustable humidistat to control the level of dryness desired.
• System lamps to tell the operating status of the unit at a glance.
• EIPL’s unique “Reverse Cycle” defrosting system, foreffectiveoperation in low ambient temperatures.
• Standard 115V power requirements for operationin any location.

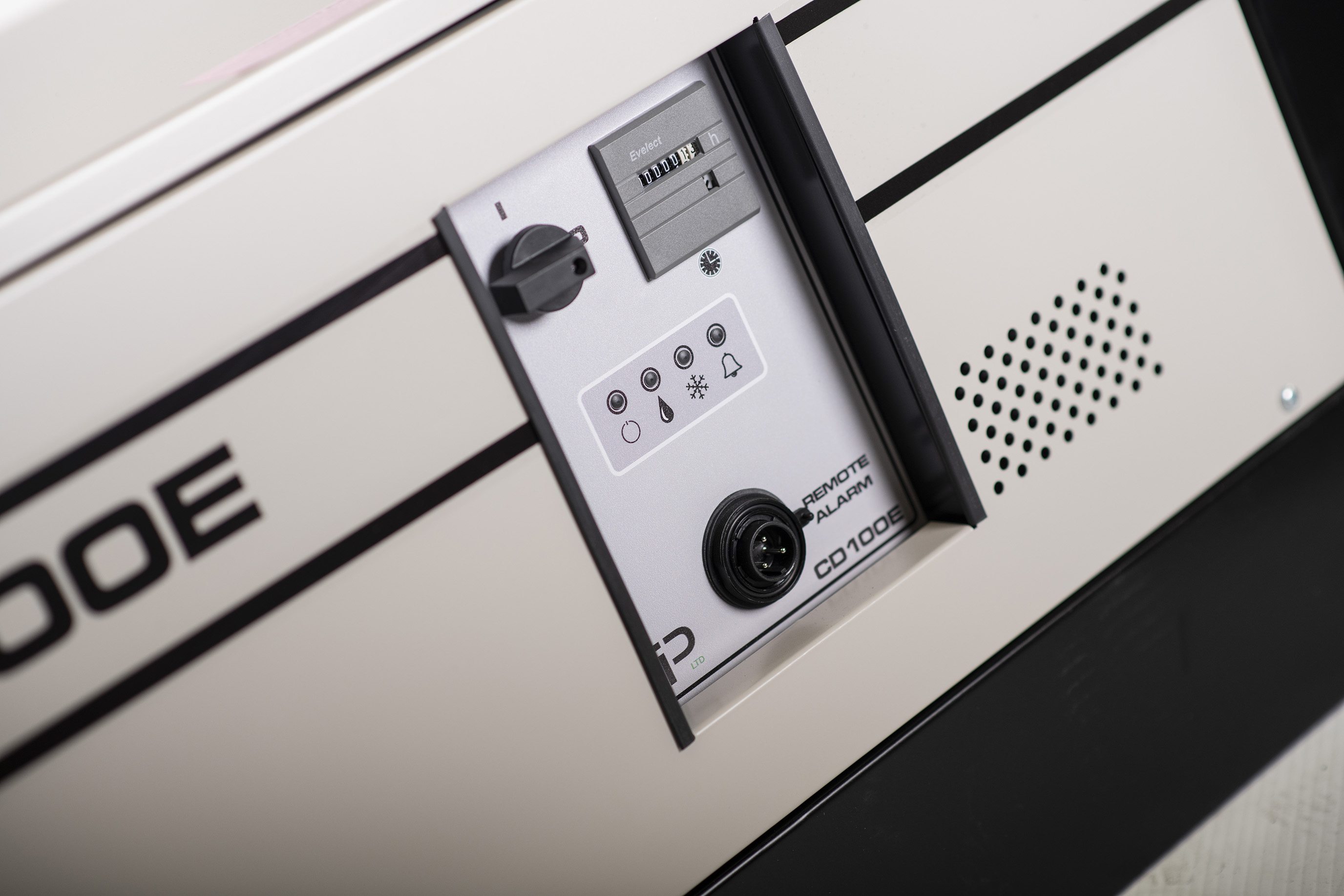

CD100E - Additional Features

• Adjustable Alarm Humidistat and“voltage free” connector.
• Power On Indicator.
• Hours Run Meter provides accuraterun time measuring.
• Supplied Complete with wall mounting bracket.

CD100 CD100E
Part Number 1133560 1027500
Height (inch) 16 16
Width (inch) 36 36
Depth (inch) 20 20
Weight(lbs) 135 135
Voltage 110 110
Phase 1 1
Frequency (Hz) 60 60
Current(A) 16 16
Power(kW) 1.09 1.09
Airflow (m3/hr) 1190 1190
Noise Level(dbA) 66 66
Effective Volume(m3) 300 300
Typical Extraction(ppd) 97 97
Min Operating Temp (°F) 33 33
Max Operating Temp (°F) 95 95
CD100 CD100E
Part Number 1133560 1027500
On/Off Control Y Y
Electronic Defrost Control Y Y
Compressor Type Reciprocating 100%
Fitted Mains Plug Y Y
Free Standing Y Y
Wall Mounting Bracket O Y
Adjustable Control Humidistat Y Y
Reverse Cycle Defrost System ¥ Y
Hours Run Meter N Y
Peristaltic Water Pump N N
High Level Cut-out Switch Y Y
Voltage Free Remote Alarm Connector N Y
Carrying Handle / Skid Y N
Power On Indicator N Y
Concealed Humidistat (Alarm & Control) N Y
Adjustable Alarm Humidistat N Y
Epoxy Powder Coating Y Y
Gravity Drain (1/2” O/D) Y Y
Part Number Description
3014388 12mm ID PVC Tubing
1027311 Wall Mounting Kit
CD100

1x CD100 Static Dryer
1x CD100 Owners Manual
1x Jubilee Clip
1x 12mm ID PVC Tubing - 3m Long

CD100E

1x CD100E Static Dryer
1x CD100 DV Owners Manual
1x Wall Mounting Kit
1x Free Socket
1x Jubilee Clip
1x 12mm ID PVC Tubing - 3m Long

How a Dehumidifier Works

1. Air is drawn into the  unit by a fan
2. Air passes over a cold surface
3. As the air is cooled, it’s moisture condenses
4. Water falls into the container
5. Air is re-heated by the heat recovery system
6. Air passes back into room 2°C warmer and considerably dryer
7. Defrost system automatically  de-ices unit as necessary
8. Unit switches off automatically when container is full
9. When the unit achieves the selected level of dryness it switches off automatically

The Application

The EIPL CD100 range are versatile workhorses, designed to eliminate high humidity problems in harshenvironments. Warehouses, storage rooms, electrical and communications switching stations, locker rooms,basements, pumping stations, offshore oil rigs and active and laid-up marine vessels have all found thisrugged range of units to be more than adequate for the tasks.

The impressive CD100 range can be easily moved from site to site, or can be permanently mountedand ducted to suit a variety of applications.

Proven Performance

Because of EIPL’s unique “Reverse Cycle” defrostingfeature, the CD100 range of units will function smoothlyin temperatures down to 33°F without frost build-up.Designed to survive under adverse conditions andto deliver the goods, this unit will effectively removemore than ninety pints of airborne water vapor perday under standard conditions (80°F, 60%RH), andwill exceed 20 gallons per day under extremeconditions found in problem environments.

The Problem

Excess humidity in your crawl space, warehouse,office, factory or shop results in corrosion, mold growthand rotting. Enormous costs are incurred every yearthrough damage to inventory and through inflatedbuilding maintenance costs as a result of dampness.Even if your building seems dry during the day, at nightwhen the temperature falls the humidity rises and thecondensation process begins. The compact physicalsize and high performance, makes the CD100 familythe ideal choice

The Dehumidifier

EIPL dehumidifiers are effective solutions to environmental control problems. The CD100 range of units are high capacity dehumidifiers, made to operate at high efficiencies by removing moisture from the air through the refrigeration process. The fan draws the moist air through the cold evaporator coil, which cools the air below its dew point. Moisture forms on the evaporator coil and is collected in the condensate tray before draining away through the condensate tube.The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by the compressor. The air is, therefore, discharged from the dehumidifier at a slightly higher temperature with a lower absolute humidity than that which entered. Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area. Because the CD100 range of units are equipped with an internal humidistat, they automatically switch on and off to save energy and expense by maintaining the desired level of humidity with intermittent operation.

The additional features of the CD100E make the unit the ideal choice for installations where remote monitoring is required. The alarm humidistat can be adjusted and preset during the installation process andwill provide means of identifying a high humidity condition. This unit is also supplied complete with a wall mountbracket and installation kit.
